Plastic Pouch



1. ESD Shielding Bags prevents products from damages due to static.
2. Best choice for packing electronic products.
3. All sizes are available in  open top/zip lock/self-adhesive/gusset/cubic styles.

4. Material structure: metal-in dissipative polyester outer layer/aluminum shielding layer/static dissipative polyethylene or polypropylene inner layer.

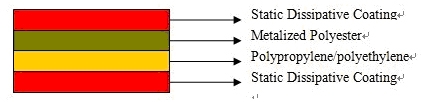

Material Composition

4256745

 Technical Parameter





NO.

Item

Unit

Test standard and   result

1

Metal layer resistance

Ohm/sq

<100

2

Metal layer optical   transmission

Optical density

40%-70%

3

Surface resistivity

Ohm/sq

108-1011

4

Time for static removal

5000-0V

<0.01 sec FTMS 101 B   Method 4046

5

Puncture resistance

P.S.I

ASTM    D3420      >100

7

MVTR

gm/100in-2/24hrs

ASTM  E    96      <0.2

8

Oxygen Barrier

CC/100in-2/24hrs

ASTM  D    3985    <0.5

9

Hot sealing temperature

F

250-375F

10

Seal strength

N/15mm

25.2

 Usage



1. The kind of bag can keep static-sensitive components away from the potential static danger to the large stextent. Its special four -layer structure can create such effect as an inductive cover to separate the goods inside from the static field.



2. Furthermore, the inner layer is made from ethane which can remove the static and avoid static generation inside the bag.



3. In addition, this kind of hot seal bag is transparent, so the goods inside can be easily recognized from outside. And the surface resistance: 108-1011



4. Applicable to pack electronic products which are sensitive to static, such as PC board, IC integrated circuit ,CD driver, HD.
